BenQ AK700ST: Ultimate 4K Golf Simulator Projector 4000 LM

Elite Sim Golf

BenQ AK700ST: Ultimate 4K Golf Simulator Projector 4000 LM

Regular price $2,899.00
2 available

Hurrify, 2 item(s) left in stock!

Wishlist

Ships direct from manufacturer. Allow 7-10 days for processing.

BenQ AK700ST: Ultimate 4K Golf Simulator Projector 4000 LM

$2,899.00

The Breakdown

4K Laser • Short Throw • Golf Optimized

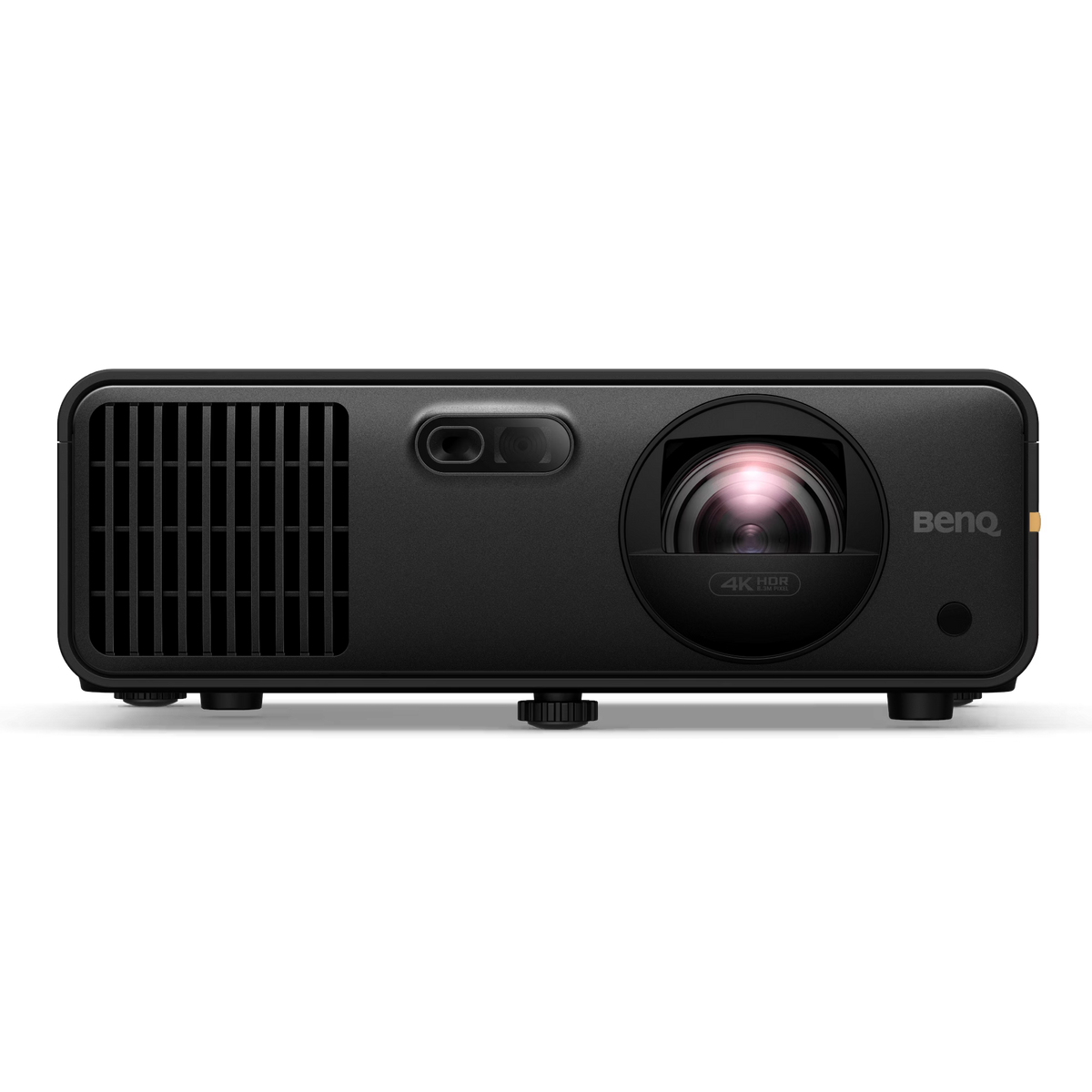

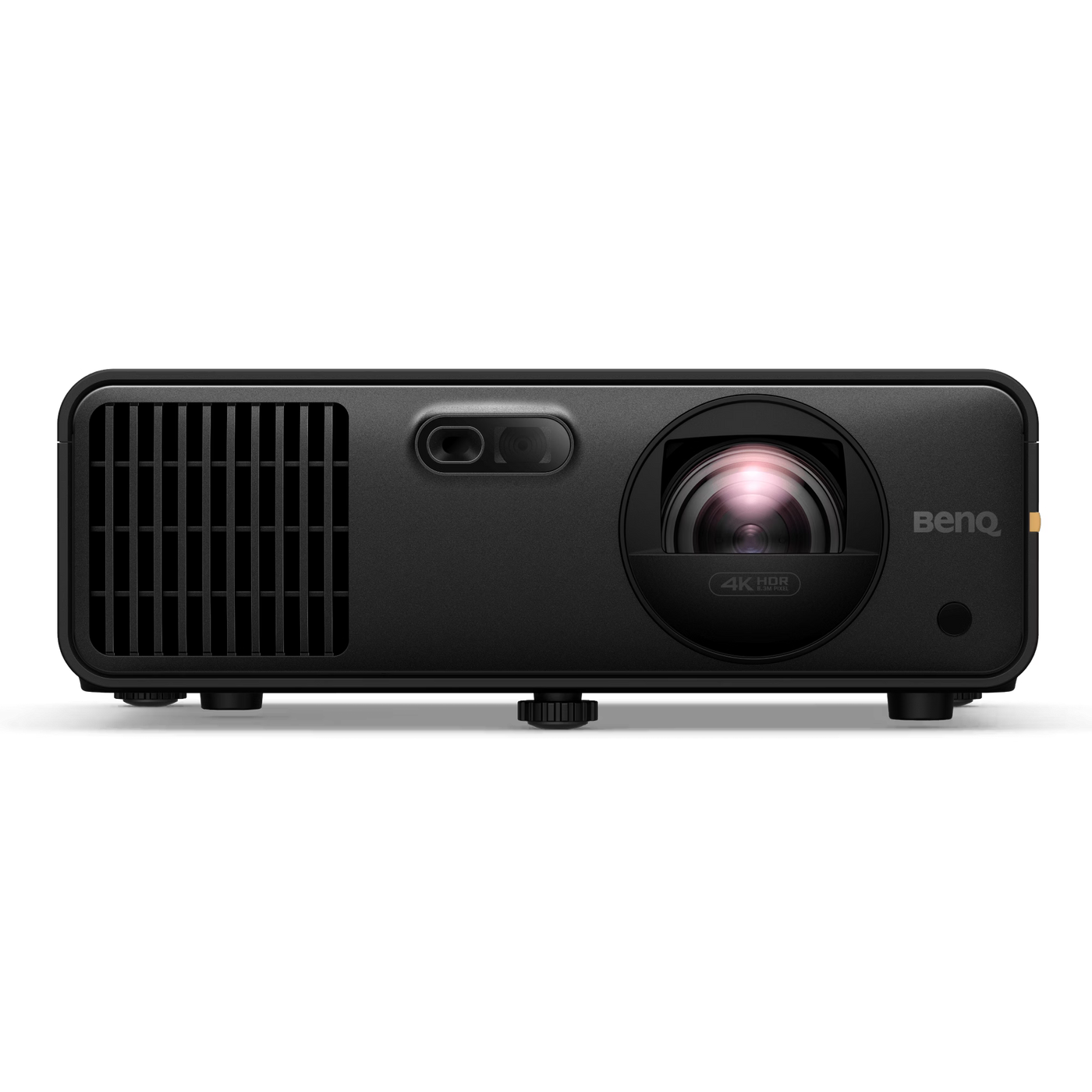

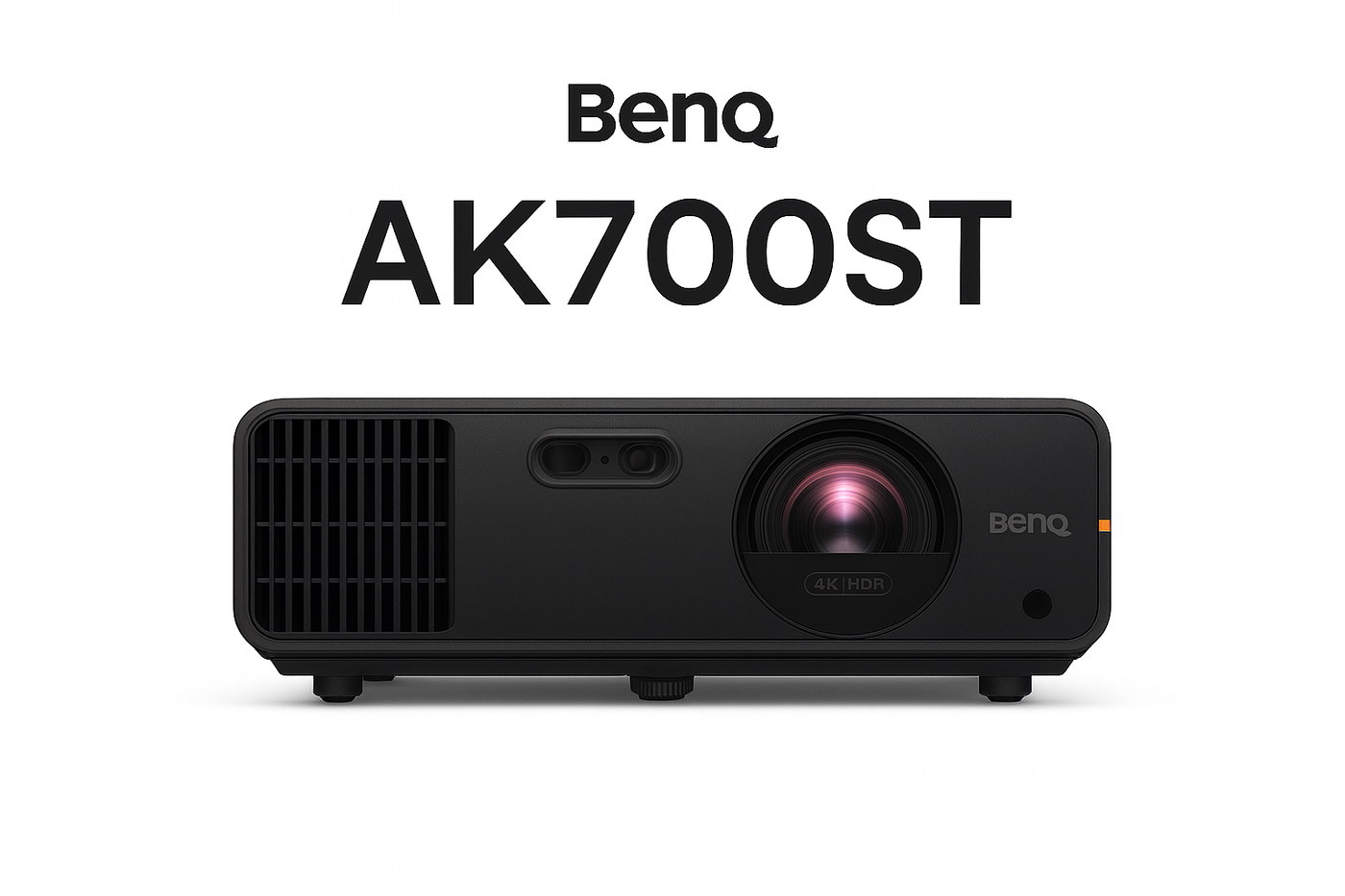

BenQ AK700ST 4K Short-Throw Laser Golf Simulator Projector

The BenQ AK700ST is a dedicated 4K UHD, 4000-lumen, short-throw laser projector built specifically for golf simulators. With golf-optimized color modes, Auto Screen Fit, quick autofocus, and a safe 0.69–0.83:1 throw ratio, it fills your impact screen with a bright, sharp image while staying out of your swing path.

True 4K UHD (3840×2160) 4000 ANSI lumens 0.69–0.83:1 short throw Auto Screen Fit + Quick Focus

Why the AK700ST is a top-tier sim projector

🏌️ Golf-optimized 4K laser engine

True 4K UHD clarity with a bright 4000 ANSI lumen laser light source and strong dynamic contrast for crisp course visuals, UI, and ball-flight lines.

📏 Safe short-throw mounting

The 0.69–0.83:1 throw ratio is ideal for golf bays—mount behind the player without shadows while still filling a large screen.

⚙️ Auto Screen Fit + quick alignment

Dial in screen fill and focus faster with Auto Screen Fit, remote-friendly focus, and geometry tools for tricky rooms.

🔌 Simulator-friendly connectivity

Built for modern PC-based sims with HDMI inputs, USB-C (DP Alt Mode) support, and easy integration into your setup.

🏠 Home + commercial ready

Designed to handle frequent use with a dust-resistant optical engine and long-life laser brightness stability versus lamp projectors.

🔍 Motorized zoom flexibility

1.2× motorized zoom makes it easier to fine-tune image size without constantly adjusting your mount position.

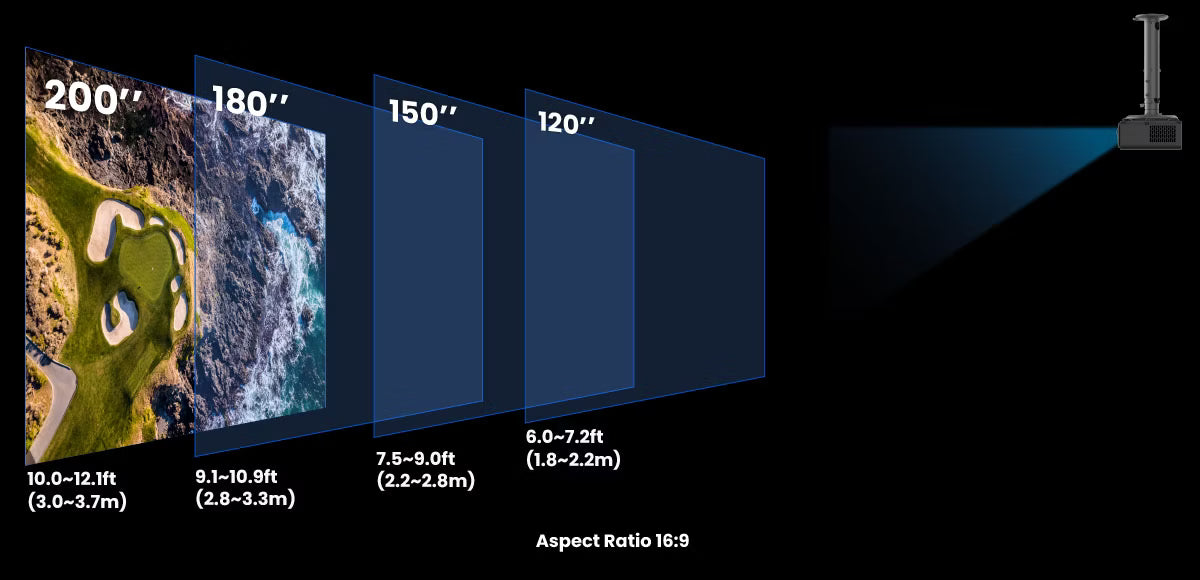

Short-throw, screen-filling picture

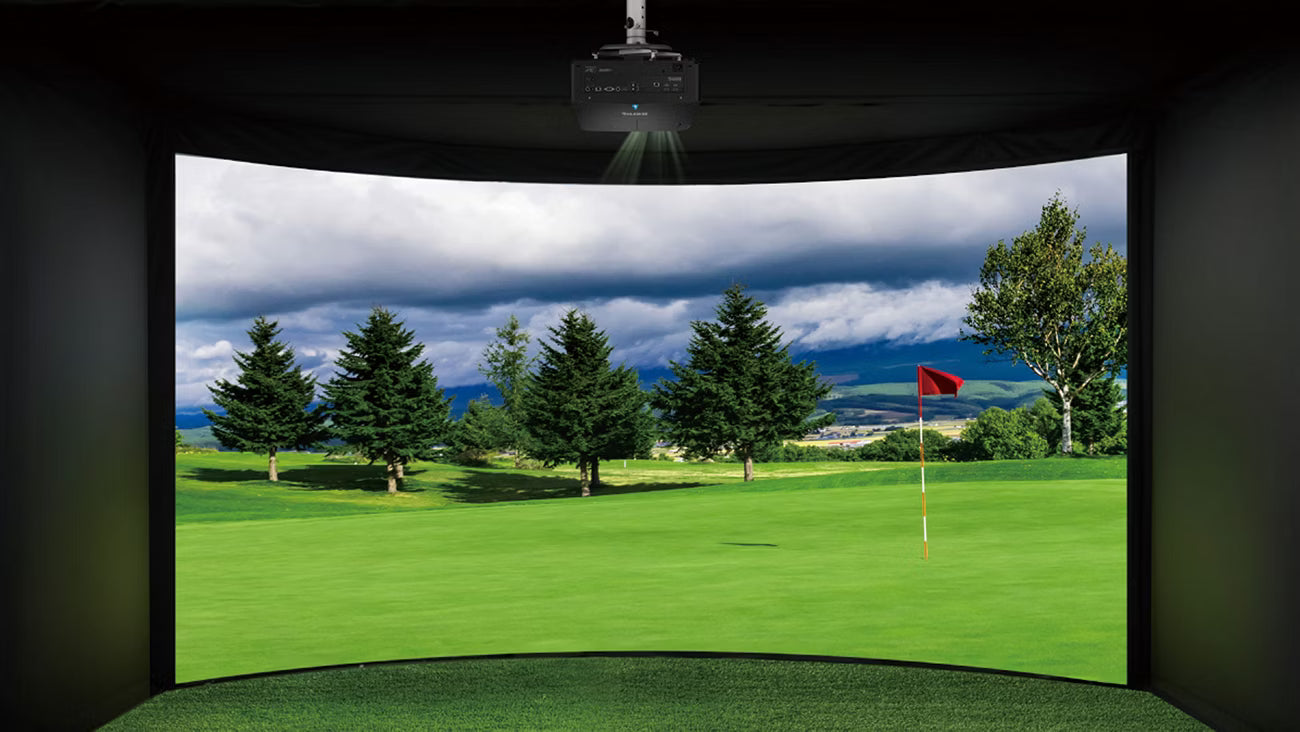

The AK700ST is engineered for simulator bays where the projector needs to stay behind the player but still fill a large impact screen with a sharp, bright image.

0.69–0.83:1 short-throw ratio for safe, shadow-free mounting
1.2× motorized zoom for fine-tuning image size without moving the mount
Ideal for typical 10–13 ft wide golf simulator enclosures
Supports 16:9 native plus 16:10, 4:3, and 1:1 options

Auto Screen Fit & quick setup

BenQ’s automation features make it easier to dial in your image without endless ladder trips or GPU menu digging.

Auto Screen Fit

Detects your screen and fills it with a single button press.

Quick Focus (remote-friendly)

Fast, precise focus adjustments from the ground.

Keystone + Corner Fit

Squaring the image is simpler in real-world rooms with imperfect geometry.

Simulator-friendly connectivity

Ready to drop into modern PC-based golf simulator setups with plenty of input and control options.

2× HDMI 2.0 (HDCP 2.2) for PCs, GPUs, and streaming devices
USB-C (DP Alt Mode) for direct connection to modern laptops
USB-A port for optional BenQ Wi-Fi dongle (wireless casting)
Audio out mini-jack for external speakers or sound systems

Ideal for premium home & commercial sims

Whether you’re building a high-end home bay or a commercial hitting studio, the AK700ST is built to handle daily use.

IP5X dustproof optical engine for tougher garage and shop environments
Supports screen sizes roughly 60"–200" diagonal
Laser light source keeps brightness more stable over time vs lamp-based projectors
Great match for 4K-ready impact screens in 4:3 or 16:9 bays

Key specifications (at a glance)

Resolution

4K UHD (3840×2160)

Brightness

4000 ANSI lumens

Contrast ratio

3,000,000:1 (dynamic)

Light source

Laser (up to ~20,000-hour life)

Throw ratio

0.69–0.83:1

Zoom

1.2× motorized

Keystone

3D (±30° vertical, ±30° horizontal, ±30° rotation)

Aspect ratios

Native 16:9; supports 16:10, 4:3, 1:1

Noise level

~32 dB (Normal) / ~29 dB (Eco)

Weight

~7.5 lbs

Who the BenQ AK700ST is for

Choose the BenQ AK700ST if you want a purpose-built 4K golf simulator projector that:

Mounts safely behind the hitting area without casting shadows
Has enough brightness for garages and bonus rooms with some ambient light
Makes screen fill, focus, and alignment as painless as possible
Delivers premium 4K image quality for both sim play and entertainment

Elite Sim Golf pairing tip

Paired with an Elite Sim Golf enclosure and a proper short-throw mounting location, the AK700ST is a top-tier choice for a clean, professional-looking simulator bay with vivid, true-to-life visuals.

Compare BenQ 4K golf simulator projectors

BenQ TK710STi

4K laser short-throw projector with smart TV — ideal for mixed golf + entertainment on a budget.

Resolution: 4K UHD (3840×2160)
Brightness: 3,200 ANSI lumens
Light Source: Laser (up to ~20,000 hours)
Throw Ratio: 0.69–0.83:1
Zoom: 1.2×
Contrast: up to 600,000:1 (dynamic)
Aspect Ratio: 16:9 (supports 4:3 / Auto)
Smart Features: Android TV, streaming apps

Best For: Golf sim + living room duty where you want 4K, laser, and built-in streaming in a smaller package.

Recommended for dedicated sim bays

BenQ AK700ST

Dedicated 4K golf projector with Auto Screen Fit — the sweet spot for serious home sim enclosures.

Resolution: 4K UHD (3840×2160)
Brightness: 4,000 ANSI lumens
Light Source: Laser (up to ~20,000 hours)
Throw Ratio: 0.69–0.83:1
Zoom: 1.2× (motorized)
Contrast: up to 3,000,000:1 (dynamic)
Aspect Ratio: 16:9 (supports 16:10, 4:3, 1:1)
Golf Features: Auto Screen Fit, Quick Focus, Golf Color Mode

Best For: Dedicated golf enclosures where you want brighter 4K, golf-specific tuning, and easier setup without jumping to the commercial price tier.

BenQ LK936ST

High-output 4K laser for oversized, commercial-grade bays and premium installs.

Resolution: 4K UHD (3840×2160)
Brightness: 5,100 ANSI lumens
Light Source: Laser (up to ~20,000 hours)
Throw Ratio: 0.81–0.89:1
Zoom: 1.1×
Contrast: up to 3,000,000:1 (dynamic)
Aspect Ratio: 16:9
Pro Features: Lens shift, advanced warping/keystone

Best For: Large commercial sims or very bright spaces where you need maximum lumens and pro-level adjustment flexibility.
